Spotlight 🔦 | ALMCO | "LR" Series Vibratory Bowls
- Precision Finishing Inc.
- 5 days ago
- 1 min read

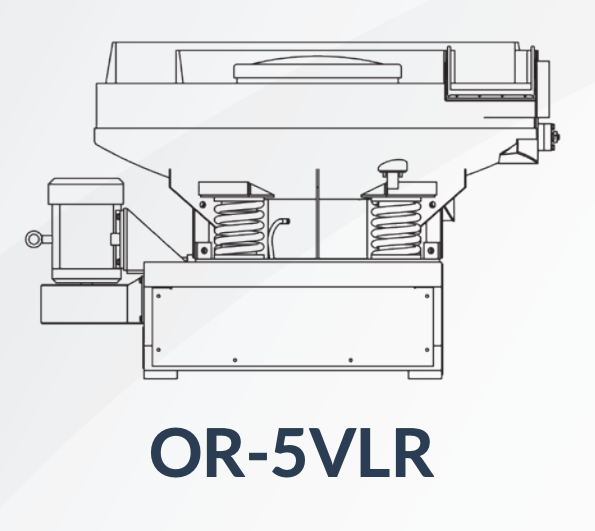

The Long Radius (LR Series) vibratory round bowls are known for their larger circumference in comparison to the other vibratory bowl series that ALMCO offers. They are best for finishing delicate or long, narrow parts due to their larger working channel, which allows parts to be further spaced out within the bowl. This series includes a built-in internal separation system for batch processing. This series is useful for through-feed operation, where the part is loaded near the discharge screen and unloaded after
making one pass around the bowl.
Standard Features: • Wet or dry processing capabilities • Space-saving, low-profile design for easy load and unload • Curved polyurethane-lined bowl for maximum finishing action • Variable speed motor for process flexibility • Extended screening deck Options: • Automatic lubrication system • Flowmeter • Tachometer • Air-operated discharge door • Robust sound hood • Gate clearing feature for internal separator • Various screen options available • UL 508A electrical controls
When parts and media are placed into the Almco LR Series Vibratory Bowl, its vibrating action causes millions of small collisions between parts and media, resulting in the removal of material along part edges and corners. A mixture of water and finishing compound washes away residual particles, resulting in a clean, smooth finish.
Precision Finishing Inc. has served the finishing industry for more than 70 years, and strives to bring the highest quality equipment and process design to our customers.Â
To request a quote, help with process design or implementation, please reach out, and we will connect you with your sales engineer!
