ALMCO
VIBRATORY
BOWLS

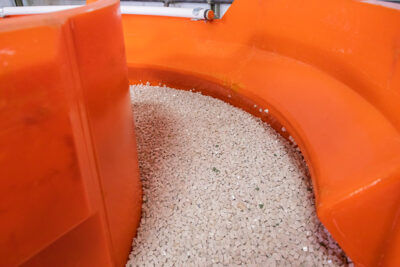

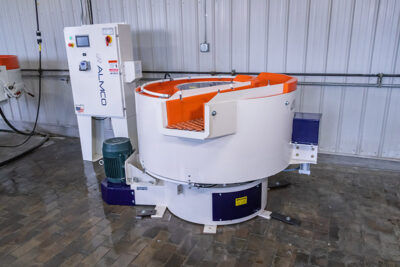

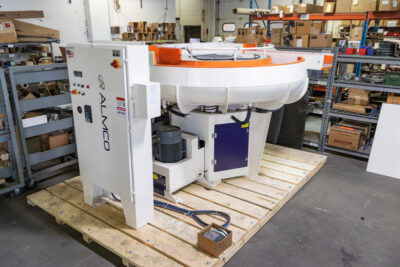

ALMCO vibratory finishing bowls deliver precise, repeatable deburring, edge radiusing, surface smoothing, and polishing for small to mid-size parts. The round bowl design creates a continuous toroidal flow, producing millions of controlled micro-collisions that ensure uniform results across every batch.

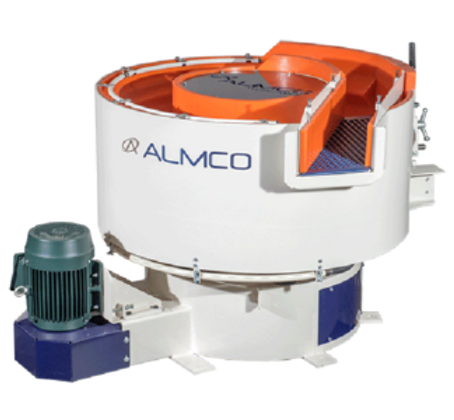

"SBB" SERIES

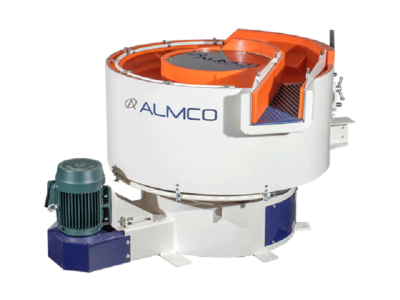

The Spiral Bottom Bowl (SBB Series) is one of our most popular offerings for round bowl finishing machines. The spiral-bottom bowl design provides a larger open area below the screen to aid in part travel around the bowl during batch processing.
Model Number | Working Capacity (cu.ft.) | Channel Cross Section (in) | Drive HP | Overall Dimension |
|---|---|---|---|---|
SBB - 8 | 8 | 12 | 7.5 | 80 x 60 x 46 |
SBB - 12 | 12 | 13 | 10 | 90 x 74 x 44 |
SBB - 24 | 24 | 17.5 | 20 | 96 x 82 x 52 |

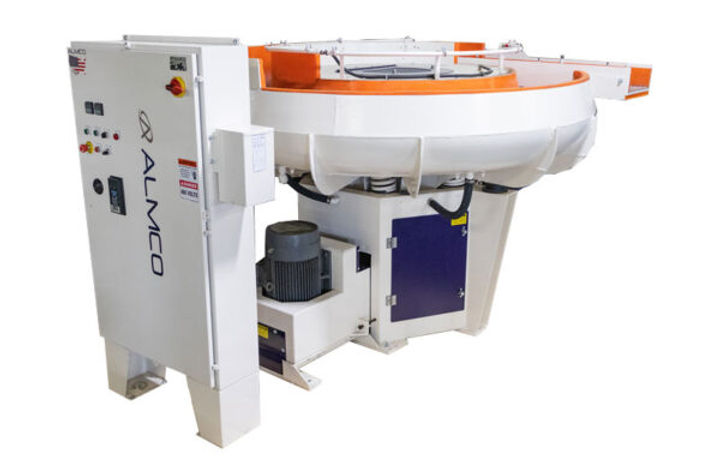

"LR" SERIES

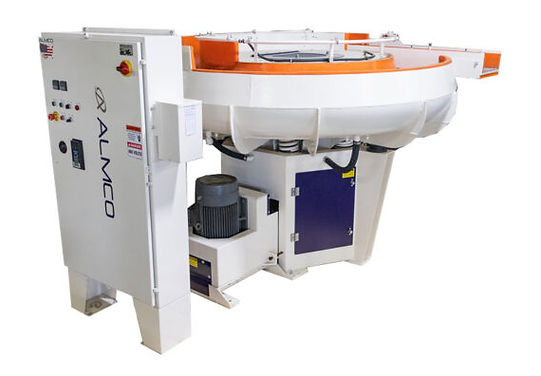

The Long Radius (LR Series) vibratory round bowls are known for their larger circumference in comparison to the other vibratory bowl series that ALMCO offers. They are best for finishing delicate or long, narrow parts due to their larger working channel, which allows parts to be further spaced out within the bowl. This series includes a built-in internal separation system for batch processing. This series is useful for through-feed operation, where the part is loaded near the discharge screen and unloaded after making one pass around the bowl.
Model Number | Working Capacity (cu.ft.) | Channel Cross Section (in) | Drive HP | Drive HP | Overall Dimension |
|---|---|---|---|---|---|
OR-5VLR | 4.2 | 8.25 | 3 | 3 | 54 x 54 x 36 |
OR-9VLR | 7.6 | 10 | 5 | 5 | 80 x 66 x 44 |
OR-16VLR | 15.2 | 12.5 | 10 | 10 | 96 x 84 x 50 |
OR-25VLR | 25.7 | 15 | 20 | 20 | 120 x 100 x 72 |
OR-40VLR | 38.8 | 17 | 25 | 25 | 144 x 144 x 78 |

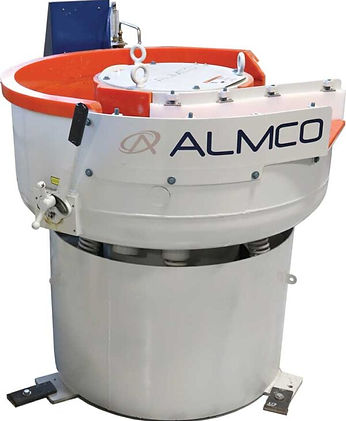

"AB" SERIES
Compact and Efficient: The AB-Series is designed to optimize your workspace. Small in size but big in performance, these bowls are perfect for batch processing and through-feed operations. Experience a seamless workflow as parts are loaded near the discharge screen and make a complete pass around the bowl.
Semi-Flat Bottom Bowl & U-Shaped Channel: Every AB-Series bowl features a unique semi-flat bottom and a U-shaped process channel. This design ensures consistent finishing of parts, making it ideal for a variety of applications.

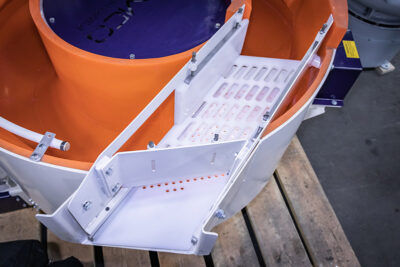

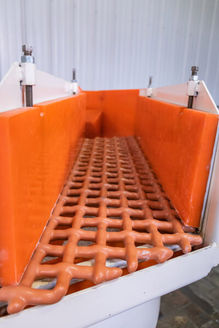

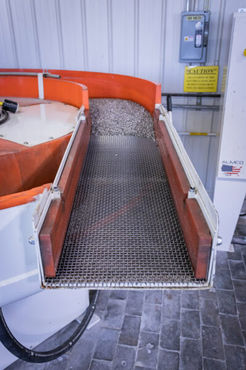

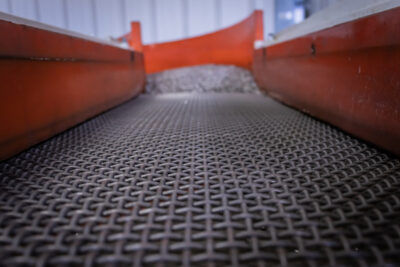

Internal Separation System: Our built-in internal separation system allows for efficient separation of parts and media, streamlining your finishing process.

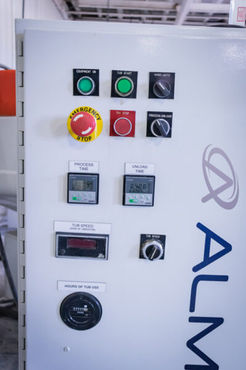

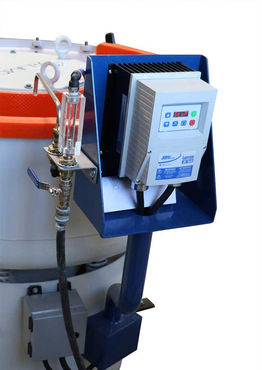

Variable Frequency Drive: Take control of your finishing with our variable frequency drive for motor control. Tailor the process to your specific needs, ensuring the best possible results.
Model Number | Working Capacity (cu.ft.) | Channel Cross Section (in) | Drive HP | Overall Dimension |
|---|---|---|---|---|
AB-4 | 4.3 | 9.5 | 1.2 | 44 x 44 x 43 |
AB-7 | 7 | 12 | 3 | 49 x 49 x 43 |
AB-12 | 11 | 14.5 | 4.6 | 54 x 48 x 40-3/4 |
"OR" SERIES

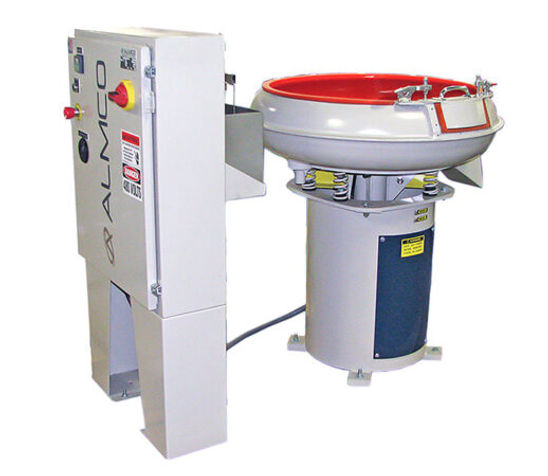

The Original Round Bowl (OR Series) is the only round bowl series in the ALMCO product line that can be fitted with dividers. The dividers provide multiple compartments and allow spaced sections for individual parts handling, preventing part-on-part contact and eliminating the need for fixturing. The curved polyurethane-lined bowl keeps parts immersed in mass to give either gentle or aggressive deburring, and the urethane drain plates and constant spray system keeps parts clean while rotating in the bowl. These machines work best for batch processing where parts are to be discharged onto an external screener for separation.
Model Number | Working Capacity (cu.ft.) | Channel Cross Section (in) | Drive HP | Overall Dimension |
|---|---|---|---|---|
OR-3 | 2.4 | 8.25 | 2 | 53 x 36 x 40 |
OR-5 | 4.5 | 10 | 3 | 57 x 45 x 40 |
OR-10 | 8.1 | 12.5 | 5 | 69 x 53 x 49.5 |
OR-20 | 17 | 17.25 | 10 | 80 x 60 x 52.5 |
OR-23 | 22.8 | 19 | 10 | 80 x 66 x 55 |
