ADF INDUSTRIAL WASHERS
ADF has been manufacturing aqueous cleaning systems, since 1984 and has developed one of the largest families of parts washing equipment in the industry. If a catalog washer will not fit your application, ADF will custom build a washer to fit your application. The owners have over 50 years’ experience manufacturing high-pressure washers. ADF’s comprehensive line of pressure washers features portable, stationary, trailer mounted systems, cold and hot water with a variety of options for operator convenience.
MACHINE
SPECS
RESOURCES
AUGER
WASHERS
ADF Auger Washers are ideal for high volume operations for parts with blind holes or those that require turning, tumbling, or movement for proper cleaning of all surfaces. Auger washers are manufactured to order because part volume, size, and cycle time dictate the proper size of this equipment.

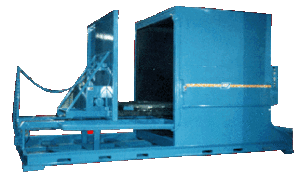

DRAWER
WASHERS
The Drawer Washer is a heavy duty washer for large parts or basket of parts. The standard turntable weight capacity is 3000 pounds and standard part height clearance is 36”. The washer is designed for crane or fork lift loading as the turntable is mounted on a carriage and comes out of the wash chamber as the door opens.

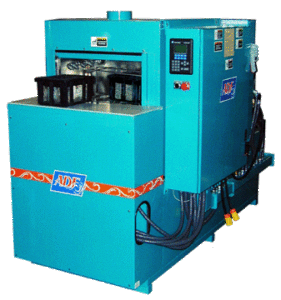

DUNKER
WASHERS
The ADF Dunker is a high quality parts washer utilizing aggressive agitation and immersion for all types of parts washing.The ADF Dunker is a high quality parts washer utilizing aggressive agitation and immersion for all types of parts washing. The aqueous solution using high quality ADF detergents provides excellent cleaning for all surfaces.
FRONT LOAD
WASHERS
ADF manufactures two different front load parts washers. While they have the same profile and exterior look, the major difference is the operating systems. One is a low volume/high pressure washer known as the 860 series. The other is a high volume/low pressure washer known as the 300 series.
GLOVE BOX
WASHER
This washer is not what it appears to be. It is not a sandblaster, but a high pressure, glove box style, parts washer. Because it is a manual type operation, it is one of the most versatile washers available. The operator simply puts the part in the washer through the side door and washes the parts by manipulating the part and the wand with his hands through the gloves.
ROTARY BASKET
WASHER
The new Model 750 Rotary Basket Parts Washer is designed to clean parts that are best suited to being tumbled, rotated, immersed, and sprayed for proper cleaning. It offers the cleaning system needed for parts with blind holes, internal holes, cavities, threads, and those small parts that tend to nest preventing total cleaning. The hydraulic action of the fluid entering and evacuating the cavities offers excellent cleaning and rinsing
PASS THROUGH
WASHER
The pass through vertical door style Model 900 is one of the popular washers because it is a high production batch washer and its material handling nature. The washer comes with a roller table on both the inlet and outlet ends of the washer allowing for clean parts to be rolled out, a batch of dirty parts rolled in and the cleaning cycle started.
ROBOTIC
WASHER
The next generation of parts washers is the integration of robots into cleaning operations. This may include a pick and place robot placing parts on a conveyor, a robot-operated spray nozzle cleaning a fixed part, or a robot manipulating a part over a fixed nozzle. Any combination of washing, rinsing, and drying can be combined into a cleaning cycle.
SPRAYBOOTH
WASHER
ADF Spray Booth Parts Washers are built to order to satisfy the customer requirements for size and weight of parts to be washed. They can be single or multi-stage and in addition to washing, can be adapted for pre-paint preparation. Accessories such as oil skimmers, filtration, auto fill, and others are available.
TOP LOAD
WASHER
ADF manufactures three different top load parts washers. While they have similar profile and exterior looks, there is a major difference in the operating systems. One is a low volume/high pressure washer known as the 800 series. The other two are high volume/ low pressure series known as the 160 and 200 series.
TUMBLE
WASHER
The Tumbler was designed to clean parts that need to be moved or turned for proper cleaning. This includes small screw machine type parts that have blind holes or tend to nest together and therefore must be moved to clean properly. Also small stamped parts that stick together because of oil on the parts or part configuration.
AUXILARY EQUIPMENT
Complete your process by utilizing ADF's high quality auxiliary equipment
MACHINE
SPECS
RESOURCES
OIL | WATER
SEPARATORS
The ADF Oil-Water Separator is designed to separate oils from oily water solutions. This allows extended life and the use of parts washers and coolant tanks. This unit is designed to recirculate solutions back to their reservoirs and is not intended to provide clean solutions to be sent to sewers.
TRAMP OIL | WATER
SEPARATORS
The portable design allows to easy movement of the separator around the plant to share with multiple units. As the solution moves through the tank, it passes through a coalescing chamber. The oil in the water or coolant attaches to the coalescing media and floats to the top. The unique feature of this system is that you can run the pump continuously or intermittently depending on your application.
WATER
EVAPORATORS
The ADF Evaporator is designed to economically reduce waste disposal quantities by evaporating water from parts washer solutions, water-soluble coolants, ink wastes, compressor, and mop water. This is an easy to use stand-alone unit which can be moved to different locations as needed.
